Using the Lighting Widget

Control and customise your home’s lighting, including Complex Lighting and Connected Lights, directly from the Wondrwall app.

Introduction

The Lighting Widget in the Wondrwall app allows you to quickly control your home’s lighting from anywhere. Each light switch is linked to a specific zone (room) and can be switched on or off independently. You can also configure Complex Lighting, which lets multiple switches control the same light or group of lights.  You can also change Connected Lights settings to suit your home’s wiring, giving you flexible, intelligent lighting control.

Accessing Your Lighting Widget

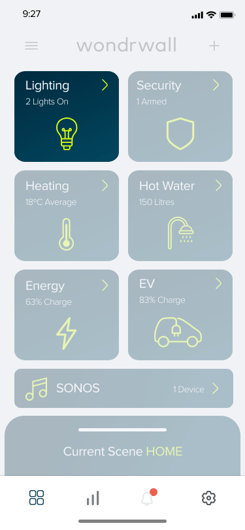

Here is an image of the Wondrwall app’s home screen with the Lighting Widget
highlighted. The widget displays:

  • Number of occupied rooms

  • Number of lights currently on

Tapping the widget will open your Lighting Overview Screen.

Steps:

  • Open the Wondrwall app. If you are logged into your home system, you will be auto-directed to the home screen.

  • On the home screen, you will see a grid of widgets, each controlling a different part of your Wondrwall system.

  • Tap the Lighting Widget.

  • You are now on the Lighting Overview Screen.



Note: Some widgets on your Wondrwall app homepage may be greyed out. This means you do not currently have any of the associated Wondrwall devices paired.

The Lighting Overview Screen

The Lighting Overview Screen is your central hub for controlling the lighting in each zone of your home. below is a deep dive into the different icons on this page

Icon Overview

Master On/Off toggle

  • This toggle is located in the top right of the Lighting Overview Screen
  • Allows you to turn every light connected to a Wondrwall Light Switch on and off simultaneously

Room Icons

  • Each room assigned to a light switch will have its own icon on this page
  • This icon contains a small icon of a person running
    • If this Icon is green, then the room/zone is active meaning someone is in therefore the room is occupied
    • If the Icon is grey, then the room/zone is inactive meaning the room is empty.

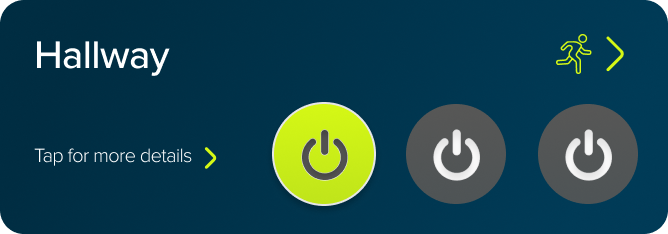

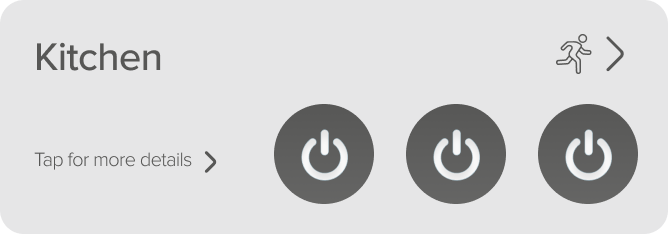

Individual On and Off Switches:

Some Wondrwall Light Switches can control more than one lighting circuit in the same room. A common example is a connected kitchen and dining room, where each area has its own lighting but both are wired to a single smart switch.

On the Lighting overview screen, each switch will appear with multiple On/Off buttons:

  • Single circuit: If the switch controls only one circuit, the On/Off button will toggle that light as expected.

  • Two circuits: If two circuits are connected, the left and right buttons control each circuit individually. The middle button controls both together (for example, turning the kitchen and dining room lights on or off at the same time).

  • Three circuits: If three circuits are connected, each On/Off button corresponds to one circuit, allowing full independent control.

The app uses clear visual states for each button:

  • On: lime green

  • Off: dark grey

Note: This room occupation is measured by the motion sensors in the Wondrwall Light switch.

Icon Colour information
Colour Image Explanation
Navy Blue The room is online, and the room's light(s) is/are switched on.
Light Blue The room is online, and the room's light(s) is/are switched off

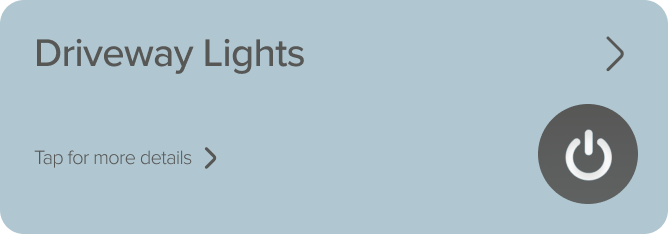

Grey The room's light switch is offline and requires connecting to your home network

Note: If one of your Wondrwall Light Switches is offline, then you will not be able to control it via the Wondrwall App. To reconnect your Light Switch to your home network, you need to complete a Wi-Fi swap. Follow this link to find detailed instructions on how to do this.

To have a closer look at the functions of a Light Switch and to access Complex Lighting settings, you will need to access the Device Page.

Steps:

  • Tap the Lighting Widget.

  • Tap the icon for the room you want to control.

you will now be on the Device Page of the selected Wondrwall Light Switch.

The Device Page

The Device Page lets you control lights on a room-by-room basis and view key information.

Icons and Functions

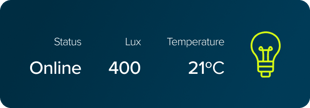

Status, Lux, and Temperature Bar

  • Status: Online/Offline
  • Lux: Luminosity Sensors in the Wondrwall Light Switch measure the brightness of your room in Lux
  • Temperature: Degrees Celcius
This bar will also be a different colour based on its connection state:
Colour Image Explanation
Navy Online
Grey Offline

Note: Learn how to get a light switch back online via a Wi-Fi swap via this link

  • The clock icon shows how long a light has been on

  • The person icon shows whether the room is occupied and for how long.

  • The large circle with Three On/Off Buttons controls lighting sections in that room. if there are multiple lighting circuits in a room

  • The complex lighting bar allows access to Complex Lighting Settings. This bar will be unable to be interacted with if you are a house member, not the main Wondrwall account owner.

Complex Lighting

Complex Lighting replaces traditional two-way and intermediate lighting circuits, allowing up to four light switches to control the same lighting circuit.

Steps

  1. Open the Wondrwall app and tap the Lighting Widget

  2. On the Lighting Overview Page, select the light switch that physically controls the light via its touch sensor.

  3. On the Device Page, choose Complex Lights.

  4. Tap Link Another Light Switch and select the selected device from the list.

  5. You will now see the three touch sensors for both devices:

    • Connected sensors on the primary device have a bulb icon. Tap to deselect (changes to a cross).

    • Tap a vacant button (darker grey) on the secondary device to link it.

    • A dotted line will confirm the link.

  6. Tap Save.

Note: Greyed-out/faded device icons are not controlling any lights, they may be acting as sensor nodes only.

Deleting a Connected Light Switch

  • You can swipe left on a room name to remove a linked switch.

Connected Lights

Each Wondrwall Light Switch has three outputs, allowing control of up to three lighting circuits. You can configure how these outputs work in the Connected Lights settings.

Configuration Modes:

State Image Explanation

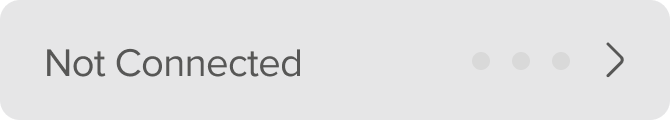

Not Connected for Complex Lighting setups with no direct lighting circuit connected.

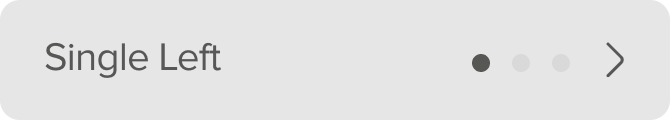

Single left one lighting circuit controlled by the left button.

Single Right

one lighting circuit controlled by the right button.

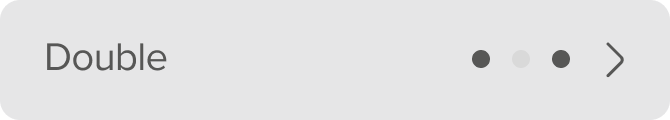

Double two lighting circuits; outer buttons control each, middle button controls both.

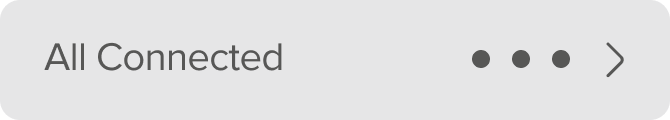

All Connected  Three lighting circuits, each controlled by its own button.

To Change Connected Lights Settings:

  1. From the home screen, select the Lighting Widget.

  2. Choose the light switch you want to edit.

  3. Tap the 🛈 icon (top right).

  4. Select Connected Lights (third grey box).

  5. Scroll through the options and select your desired setting.

  6. Press < to exit and save.

Light Switch Info Screen

The 🛈 icon on the Device Page lets you:

  • View temperature, humidity, and device ID.

  • Change Connected Lights (main account holder only).

  • Change the network (follow the Wi-Fi Swap guide).

FAQs

Q: What is Complex Lighting?
A: A feature that lets multiple light switches control the same lighting circuit, replacing traditional two-way wiring.

Q: Why are some devices greyed out in the Complex Lighting Page?
A: They are not currently controlling any lights and may be functioning as sensor nodes.

Q: Can household members change Complex Lighting or Connected Lights settings?
A: No, only the main account holder can configure these features.

Q: How many switches can be linked in Complex Lighting?
A: Up to four switches can control the same lighting circuit.

Q: What should I do if my light switch is offline?
A: Perform a Wi-Fi Swap to reconnect it to your network.
